In modern manufacturing, CNC machines play a crucial role due to their high efficiency and precision. However, during automated machining, factors like excessive cutting forces, high temperatures, chip interference, and tool wear can lead to tool damage or even breakage. If such issues go unnoticed, they can compromise product quality, damage equipment, or pose safety risks, resulting in significant economic losses for businesses.

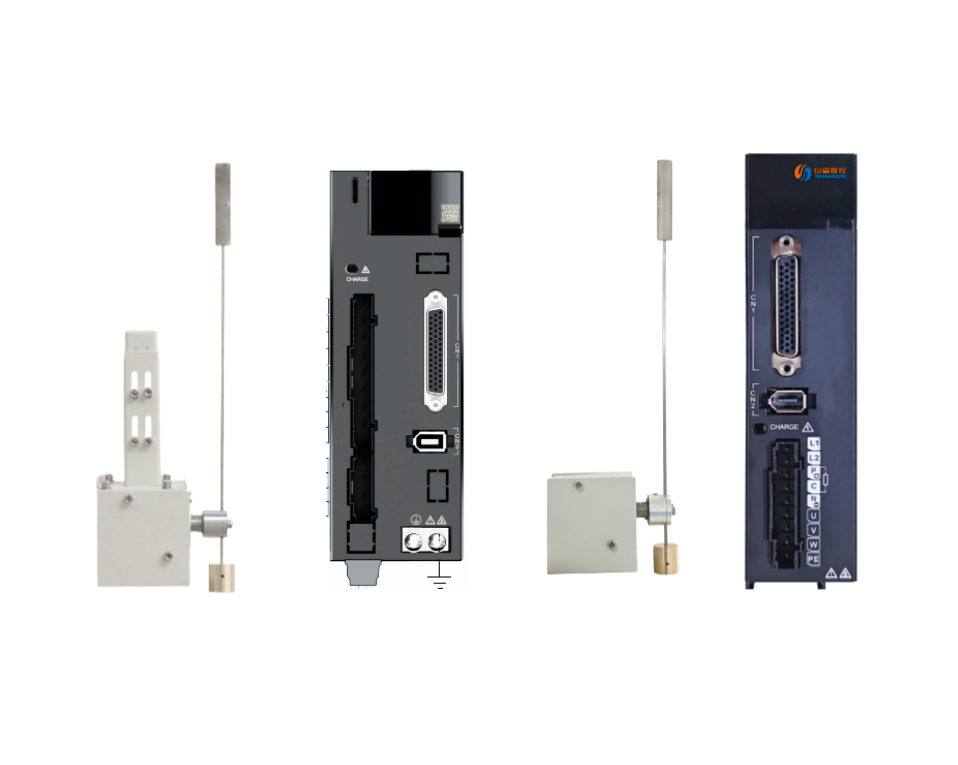

The broken tool detector is an advanced solution designed to address these challenges. This device provides fast and accurate detection of tool damage, issuing timely warnings to prevent unexpected incidents during machining. Key features of the broken tool detector include:
1. Real-Time and Non-Disruptive Detection
The detection process is conducted directly within the tool magazine, eliminating the need to pause machining. Compatible with various tool magazine designs, such as disk-type and chain-type configurations, the detector ensures continuous production efficiency without sacrificing valuable machining time.
2. Precise Identification of Tool Issues
Equipped with state-of-the-art sensing technology, the detector can identify tool wear and breakage with high precision, even detecting minor anomalies. Real-time alerts help operators replace damaged tools promptly, minimizing the risk of defective products.
3. Improved Safety and Cost Savings
The detector’s timely alarms prevent safety hazards associated with broken tools while reducing losses caused by equipment damage or unplanned downtime. This improves overall operational safety and delivers economic benefits by reducing scrap rates and optimizing machining workflows.
4. Intelligent and Flexible Design
The broken tool detector seamlessly integrates with various CNC systems and is compatible with a wide range of machine tools. Its modular design allows for easy installation, maintenance, and future upgrades, supporting intelligent manufacturing advancements.
Widely applied in industries such as automotive, aerospace, and precision machinery, the broken tool detector is a reliable solution for monitoring tool conditions. By increasing detection accuracy, reducing downtime, and enhancing product quality, it enables businesses to achieve safer and more efficient production while paving the way for intelligent manufacturing.
